FMCN16

PACIFIC BEARING COMPANY
FMCN16

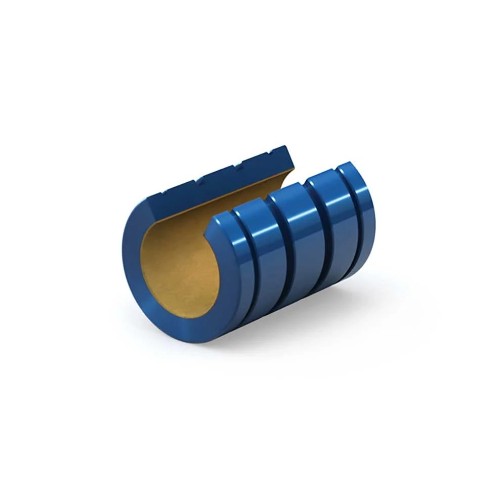

Plain Linear Bearing - FMCN Series, 0.6250 in Shaft Diameter, 26 mm Outside Diameter, 36 mm Overall Length, Open
Mi Item #01223074
MFR #FMCN16
Price$53.84/each
Home
Linear Motion
Ball Guides
Round Shaft Bushings
PACIFIC BEARING COMPANY FMCN16
Tap image to view
Photo may not represent actual item. Refer to name and product specs for all details.

PACIFIC BEARING COMPANY
FMCN16

Plain Linear Bearing - FMCN Series, 0.6250 in Shaft Diameter, 26 mm Outside Diameter, 36 mm Overall Length, Open
Mi Item #01223074
MFR #FMCN16
Mfr description
FMCN16 LINEAR BRG
In StockFactory Order
Shipping
Shipping time may vary. Motion rep will advise.
This product requires a Quote Request and may take longer to process and ship
USD$53.84/each

PACIFIC BEARING COMPANY
FMCN16

Plain Linear Bearing - FMCN Series, 0.6250 in Shaft Diameter, 26 mm Outside Diameter, 36 mm Overall Length, Open
Price$53.84/each

Specifications

Dimensions

  • Outside Diameter
    26 mm
  • Overall Height
    23.11 mm, 0.9100 in
  • Overall Length
    36 mm
  • Overall Width
    1.0200 in, 25.91 mm
  • Shaft Diameter
    0.6250 in

Details

  • Bearing Material
    Anodized aluminum
  • Bushing Type
    Plain Bushing
  • Clearance Alignment Type
    Adjustable
  • Closure Type
    Open
  • Lubrication
    Self Lubricating
  • Operating Temperature Range
    -400 to 400 °F
  • Resistance Features
    High Temperature Resistant, Vibration Damping
  • Seal Type
    Open
  • Series
    FMCN
  • Static Load Capacity
    5100 N
  • Type
    Linear
