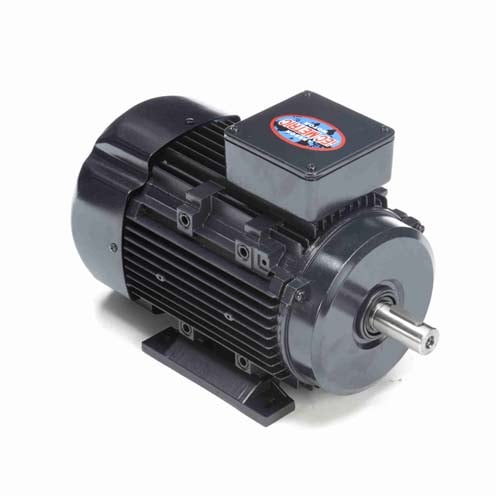

LEESON ELECTRIC C90T17FZ18A
Tap image to view
Photo may not represent actual item. Refer to name and product specs for all details.

LEESON ELECTRIC
C90T17FZ18A

IEC Frame AC Motor - 1.50 kW, 1800 rpm, 3 ph, 230/460 V, D90L Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1745 rpm Base, B3 Flange Mount, Continuous Duty
Mi Item #04749011
MFR #C90T17FZ18A
Mfr description
192207.00,2HP,D90LC,1800RPM,3PH,TEFC
  • Aluminum frame and cast iron frame construction
  • DC and stainless steel IEC motors available
  • 60/50 Hz interchangeability
Discontinued
We no longer carry this product. If you need assistance finding a replacement, you can request an item or contact us

Specifications

Dimensions

  • Drive End Bearing Size
    6205
  • Frame Size
    D90L
  • Opposite Drive End Bearing Size
    6205
  • Overall Length C Dimension
    12.83 in
  • Service Factor
    1.15
  • Shaft Diameter
    1.0000 in
  • Weight
    42 lbs

Details

  • 2D Drawing
    Click here
  • Ambient Temperature Range
    40 °C
  • Assembly Box Mounting
    F3
  • Base RPM
    1745 rpm
  • Description Keyword
    2 hp
  • Duty Condition Type
    Continuous Duty
  • Electrical Type
    Squirrel Cage Induction Run
  • Enclosure Type
    TEFC (Totally Enclosed Fan Cooled)
  • Frame Material
    Aluminum
  • Frequency Rating
    60 Hz
  • Full Load Efficiency
    86.50 %
  • Harmonization Code
    8501.52.4000
  • Insulation Class
    F
  • IP Rating
    55
  • KVA Code
    J
  • kW
    1.50 kW
  • Manufacturer Product Page
    Click here
  • Manufacturer Upc Number
    691720246931
  • Motor Horsepower
    2 hp
  • Motor Orientation
    Horizontal
  • Motor Phase
    3 ph
  • Motor Poles
    4-pole
  • Motor Supply Voltage
    230/460 V
  • Mounting Type
    B3 Flange
  • NEMA Design Class
    B
  • Product Type
    IEC Frame Motors
  • Shaft Rotation
    Reversible
  • Shaft Type
    Standard IEC
  • Standards Met
    CE, UL Recognized, CSA
  • Starting Method
    Line or Inverter
  • Synchronous Rpm
    1800 rpm
  • Thermal Protection
    None
  • Type Of Bearing
    Ball Bearing
  • Volts @ Frequency
    230/460 V @ 60 Hz
  • Wiring Diagram
    Click here
