VICKERS BY DANFOSS
02-342106

Name: 02-342106
Brand: VICKERS BY DANFOSS
SKU: 05159728
Price: 2101.41 USD
Availability: InStock

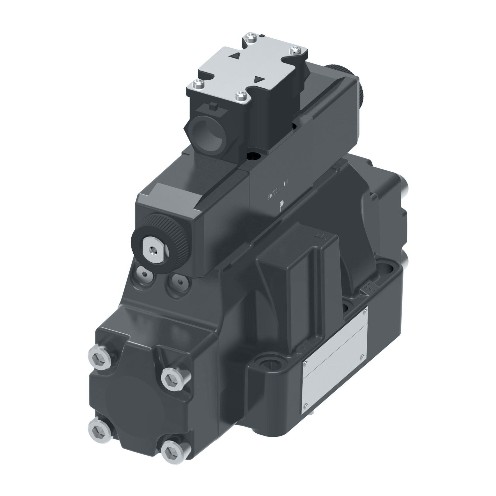

02-342106 Directional Control Valve - Pilot Actuation, 4-Way, D08 Valve, 185 gpm Max Flow, 110 V ac (50 Hz) / 120 V ac (60 Hz) Coil

MI ITEM #05159728

MFR #02-342106

Availability:

Factory Order

Shipping

Shipping time may vary. Motion rep will advise.

This product requires a Quote Request and may take longer to process and ship

Price$2,101.41/each

Qty

Specifications

Actuation
Pilot
Body Material
Ductile Iron
Check Location
Solenoid A, Solenoid B
Check Valve Type
Directional Control Valve
Coil Voltage
110 V ac (50 Hz) / 120 V ac (60 Hz)
Design Number
10
Electrical Connection
Flying Lead Coil
Electrical Connector Type
Flying Lead Coil with 1/2 In. NPT Thread Wiring Housing
Flow Direction
4-Way
Fluid Comp
Petroleum Oil
Max Operating Temperature
150 °F
Maximum Flow Rate
185 gpm
Maximum Operating Pressure
5000 psi
Min Operating Temperature
0 °F
Mounting Type
Subplate
Performance Specification
High Performance
Seal Material
Nitrile
Series
DG5V-8 10 Design
Spool Spring Arrangement
Spring Centered
Spool Type
Tandem Center (P to T) Open Crossover
T Port Pressure Rating
5075 psi
Valve Application
Industrial
Valve Type
IV Directional Control Valves
Wiring Housing Type
1/2" NPT Thread

Mfr description

DG5V8H8CEVMFWB10
