B7006-C-T-P4S-UL

FAG (SCHAEFFLER)
B7006-C-T-P4S-UL

Spindle & Precision Machine Tool Angular Contact Bearing - 30 mm Bore, 55 mm OD, 13 mm Width, 15 ° Contact, Open
MI ITEM #06962720
MFR #B7006-C-T-P4S-UL
Price$632.89/each
Home
Bearings
Ball Bearings
FAG (SCHAEFFLER) B7006-C-T-P4S-UL

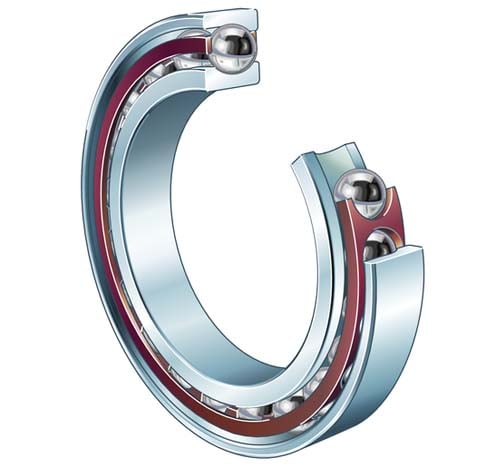

Tap image to view
Photo may not represent actual item. Refer to name and product specs for all details.

FAG (SCHAEFFLER)
B7006-C-T-P4S-UL

Spindle & Precision Machine Tool Angular Contact Bearing - 30 mm Bore, 55 mm OD, 13 mm Width, 15 ° Contact, Open
MI ITEM #06962720
MFR #B7006-C-T-P4S-UL
Availability:
In Stock
In stock
Shipping
This product requires a Quote Request and may take longer to process and ship
Price$632.89/each

FAG (SCHAEFFLER)
B7006-C-T-P4S-UL

Spindle & Precision Machine Tool Angular Contact Bearing - 30 mm Bore, 55 mm OD, 13 mm Width, 15 ° Contact, Open
Price$632.89/each

Specifications

Dimensions

  • Bore Diameter
    30 mm
  • Contact Angle
    15 °
  • Outside Diameter
    55 mm
  • Overall Width
    13 mm
  • Weight
    113.2 g, 3.993 oz

Details

  • Ball Retainer Material
    Laminated Fabric
  • Ball Screw Application
    No
  • Bore Type
    Straight
  • Closure Type
    Open
  • Flush Ground
    Yes
  • Max Operating Temperature
    100 °C, 212 °F
  • Max Rpm
    43000 rpm
  • Maximum Operating RPM
    43000 rpm
  • Min Operating Temperature
    -30 °C, -22 °F
  • Number Of Rows
    1
  • Product Type
    Spindle & Precision Machine Tool Angular Contact Bearings
  • Radial Dynamic Load Capacity
    14400 N, 3237.25 lbf
  • Radial Static Load Capacity
    6700 N, 1506.22 lbf
  • Relubricatable
    No
  • Row Type Fill Slot
    No
  • Series
    B70
  • Snap Ring Included
    Without Snap Ring

Overview

Mfr description
B7006-C-T-P4S-UL
