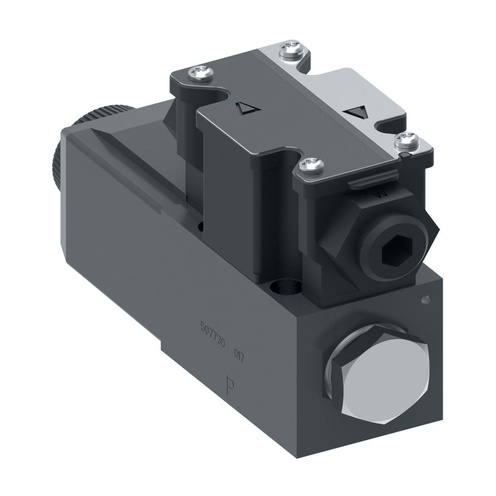

Tap image to view

Photo may not represent actual item. Refer to name and product specs for all details.

VICKERS BY DANFOSS
DG4V-3-0B-M-FTWL-D7-H7-60

Name: DG4V-3-0B-M-FTWL-D7-H7-60
Brand: VICKERS BY DANFOSS
SKU: 08450218
Price: 686.09 USD
Availability: InStock

Hydraulic Directional Control Valve - Solenoid Operated Actuation, NG6 (D03) Valve, 80 L/min, 21.134 gpm Max Flow, 24 V dc Coil

Mi Item #08450218

MFR #DG4V-3-0B-M-FTWL-D7-H7-60

Mfr description

DG4V-3-0B-M-FTWL-D7-H7-60

Compare

Save to List

Factory Order

Shipping

Shipping time may vary. Motion rep will advise.

This product requires a Quote Request and may take longer to process and ship

USD$686.09/each

Specifications

Actuation
Solenoid Operated
Coil Voltage
24 V dc
Electrical Connection
Flying lead wired terminalblock and 1/2 in NPT thread wiring housing
Electrical Connector Type
Conduit Box with 1/2 in NPT
Manual Override Type
Plain
Max Operating Temperature
158 °F, 70 °C
Maximum Flow Rate
80 L/min, 21.134 gpm
Maximum Operating Pressure
350 bar, 5000 psi
Min Operating Temperature
-4 °F, -20 °C
Mounting Type
Manifold
Performance Specification
High performance
Seal Material
Viton
Series
DG4V-3
Spool Spring Arrangement
Spring-Offset
Spool Type
all ports connected, Open center
T Port Pressure Rating
3045.79 psi, 210 bar
Valve Application
Industrial Machinery
Valve Type
Spool Valve
Wiring Housing Type
Flying Lead 1/2 in NPT Housing
