CD2324

GRACO INC
CD2324

Lubrication Pump - Piston, Grease, 0.074 L/min Flow Rate, 20 L Compatible Container Size
Mi Item #08917220
MFR #CD2324
Price$13,142.63/each
Home
Process Pumps and Equipment
Specialty Pumps
Lubrication Pumps
GRACO INC CD2324
Tap image to view

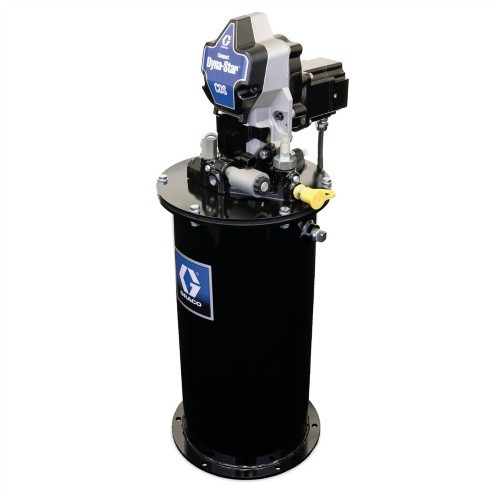

Photo may not represent actual item. Refer to name and product specs for all details.

GRACO INC
CD2324

Lubrication Pump - Piston, Grease, 0.074 L/min Flow Rate, 20 L Compatible Container Size
Mi Item #08917220
MFR #CD2324
Mfr description
CD2324 PUMP COMPACT DYNASTAR 20L
In StockFactory Order
Shipping
Shipping time may vary. Motion rep will advise.
This product requires a Quote Request and may take longer to process and ship
USD$13,142.63/each

GRACO INC
CD2324

Lubrication Pump - Piston, Grease, 0.074 L/min Flow Rate, 20 L Compatible Container Size
Price$13,142.63/each

Specifications

Dimensions

  • Compatible Container Size
    20 L
  • Height
    50.9000 in, 1292 mm
  • Length
    13.9000 in, 353.10 mm
  • Overall Height
    50.9000 in, 1292 mm
  • Overall Length
    13.9000 in, 353.10 mm
  • Overall Width
    11.4961 in, 292 mm
  • Weight
    73 lbs, 33.1 kg

Details

  • Application
    In-Plant Machinery, Off-Road Equipment
  • Container Type
    Reservoir
  • Flow Rate
    0.074 L/min
  • Includes
    20 L Reservoir, Auto-Fill Shut Off, Follower Plate, Pressure and Level Reporting
  • Lubrication Type
    Grease
  • Material
    Carbon Alloy Steel
  • Max Operating Temperature
    65 °C, 149 °F
  • Maximum Operating Pressure
    3500 psi
  • Min Operating Temperature
    -40 °C, -40 °F
  • Pump Material
    Carbon Steel
  • Pump Type
    Piston
  • Series
    Compact Dyna-Star
  • Type
    Compact Electric Piston Pump
  • Voltage
    24 V dc
