Overview
Mfr description

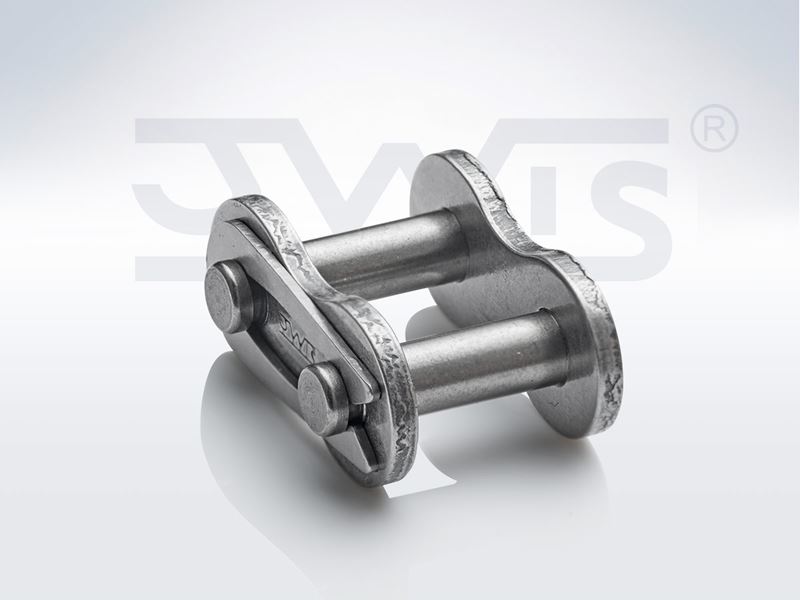

08B-2(D85) MEGALIFE SCCL JWIS CONN LINK
- The Megalife I series products are suitable for normal chain applications without relubrication at speeds of up to 3 m/s.
- Under certain conditions, the chains are entirely maintenance-free, can be easily dismantled and can be used in corrosive environments.
- Using the same range of attachments as iwis' standard conveyor chains, the Megalife chains are fully compatible with the standard products.
- As well as roller chains, the Megalife I series also includes transfer chain, accumulation chain and grip chain variants.
Specifications
- Chain Size & Pitch08B-2 / 1/2 in
- Link TypeConnecting Link
- Number Of Strands Across2
- Chain ConstructionSpring Clip
- Roller Diameter8.51 mm
- Link Plate Height11.80 mm
- Pin Diameter4.45 mm
- SeriesNickel Plated
- Standards MetISO 606
- Manufacturer Catalog
- Manufacturer Upc Number847648035670
- UPC_NO847648035670
- Weight0.03 lbs
- Chain Number & Pitch08B-2 / 1/2 in
- 2D Drawings
- Tensile Strength40.00 kN
- Pitch1/2 in
- Roller Width7.75 mm
- Weight per Foot0.91 lbs
- Product TypeRoller Chain Links
